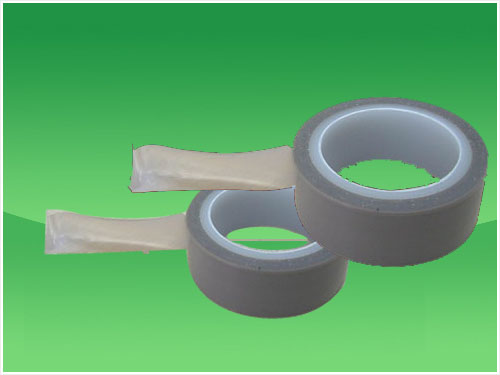

PTFE tape
PTFE tape
| ProductCategory: | High temperature adhesive tape >> PTFE (iron) teflon film tape >; PTFE tape |
| ProductName: | PTFE tape |
| Product Code: | 102212541016 |
|
One, the production process and performance:
PTFE tape is made from PTFE molded blank turning system, has gooddielectric properties, aging, resistance to chemical corrosion resistance.Film adhesive tape and the other with a strong anti adhesion, heat resistance, good softness.
Two, PTFE tape classification:
1, 2, non directional orientation
Three, product application
1, with Teflon glass fiber cloth tape similar performance
2, work in various media for gasket seal and lubrication materials, as well as in various frequency electrical insulating components, capacitor dielectric, instrument and meter insulation.
3, widely used in packaging, thermoplastic, composite, sealing and electrical industries, where the need for anti adhesive sealing corrosioninsulation parts can be pasted, and has repeatedly paste function.
Four, technical parameters and specifications:
PTFE tape thickness of 0.08 ~ 0.5MM can produce. General color isbrown and black, other colors can be used.
Number of maximum thickness of wide adhesion strength (tensile strength of steel) temperature
T2-008 0.08mm 125mm 20N/100mm 300N/100mm -70-260 C
T2-013 0.13MM 125mm 25N/100mm 400N/100mm -70-260 C
T2-018 0.18mm 125mm 44N/100mm 650N/100mm -70-260 C
T2-025 0.25mm 125mm 58N/100mm 950N/100mm -70-260 C
